Automatic intelligent box making machine, in the packaging machinery industry, the molding machine series products are: carton molding machine and automatic intelligent box making machine, which Automatic intelligent box making machine is an indispensable equipment for the production of cartons, the market mainly contains hot melt glue machine automatic intelligent box making machine, and no hot melt glue machine automatic intelligent box making machine two kinds.

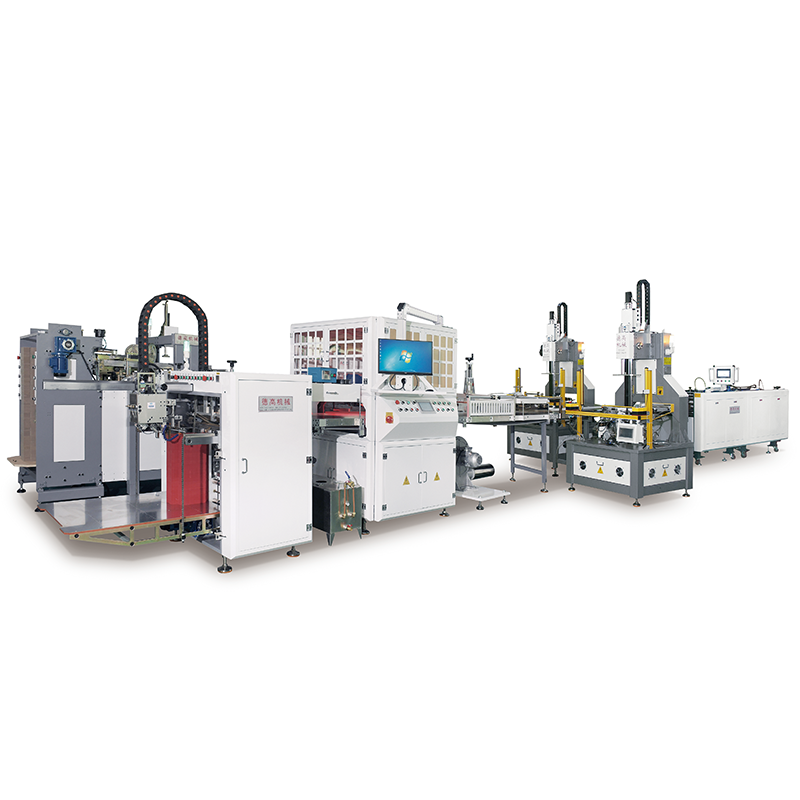

Full-automatic intelligent carton making machine with hot melt glue machine is the best equipment for making high-grade high-quality paper carton with sky and earth cover. It adopts PLC programmable controller, photoelectric tracking system, hydraulic and pneumatic system, touch screen human-machine interface, and implements automatic paper feeding, paper gluing, automatic cardboard conveying, cardboard molding and four corners, positioning and laminating, and carton molding action in one go, and the whole machine produces automatic on-line action, and the production efficiency is increased by more than thirty times comparing with that of the traditional process.
Classification:
Including: carton packaging machinery, carton production line, automatic box making machine, automatic carton machine, carton wrapping equipment, paper products packaging equipment.
Containing hot melt adhesive machine automatic intelligent carton making machine has the following features:
(1) Full-automatic flyer conveying part for top paper.
(2) Hot melt adhesive automatic circulation, mixing and gluing system.
(3) Hot melt adhesive paper belt automatic conveyor, slitting device, one-time completion of the cardboard inner box four corners of the corner pasting operation.
(4) There is a vacuum blower under the conveyor belt to control the relative offset of the overglued surface paper.
(5) Hydraulic and pneumatic deviation correction device is adopted between the glued surface paper and the inner box of cardboard, which can accurately locate and fit the cardboard box, with a fitting error of ±0.5mm.
(6) The carton molding section automatically collects the carton to the molding section according to the carton delivery above the conveyor belt.
No hot melt adhesive machine automatic intelligent box making machine is also the use of PLC programmable controller, photoelectric tracking system, touch screen human-machine interface, the implementation of paper feeding, gluing, cardboard molding post four corners, positioning and laminating, automatic lead, into the box, wrapping, folding ears and folding into the molding action is completed in one go. Has a simple structure, easy to operate, fast speed, adapt to large, medium and small packaging enterprises to use.
No hot melt adhesive machine automatic intelligent box making machine has the following characteristics:
(1) Mechanical automatic lifting, leveling by four side brushes, and automatic discharging.
(2) Suction device, make the carton firmly sucked on the mold.
(3) Safe and convenient operation, double insurance protection, automatic transmission, pointing/automatic type operation.
(4) Frequency conversion speed regulation, can control the speed according to the operator's skillfulness.
The main classification of automatic intelligent box making machine:
It can be divided into carton packaging machinery, carton production line, automatic carton making machine, automatic carton machine, carton wrapping equipment, paper products packaging and other equipment
Technical Parameters of Automatic Intelligent Carton Making Machine:
Power: 380V, 50Hz, 2.5KW Air pressure: 4-8kg/cm2 Tape width: 4.8-7.2cm Forming speed: 20-60 boxes/min (according to the specifications) Tape length: 2000m With hot melt glue machine: any brand of machine can be matched Carton specifications: L 150mm-506mm W 150mm-405mm H 102mm- 405mm Overall dimensions: L 3000mm W 150mm-405mm H 102mm- 405mm 405mm Overall dimensions: L 3000mm W 2000mm H 1700mm
Features:
1.Full-automatic flyer conveying part for facial paper.
2.Hot melt adhesive automatic circulation, stirring and gluing system. (Optional glue concentration automatic control device) - Hot melt adhesive paper belt automatic conveyor, slitting device, one-time completion of cardboard inner box four corners of the corner pasting operation.
3.There is a vacuum fan under the conveyor belt to control the relative shift of the glued surface paper.
4.Hydraulic and pneumatic deviation correction device is adopted between the glued surface paper and the inner box of cardboard, which can accurately locate and fit the cardboard box, with a fitting error of ±0.5mm.
5.The carton molding section automatically collects the carton to the molding section according to the carton conveying situation above the conveyor belt.
6.The carton molding section operates carton feeding, wrapping, folding and folding into the molding action in a coherent manner.
7.Adopting PLC programmable controller, photoelectric tracking system and touch screen human-machine interface to automate the production process of one-time molding of carton with sky/earth cover.
8.Automatic fault diagnosis and alarm function.
