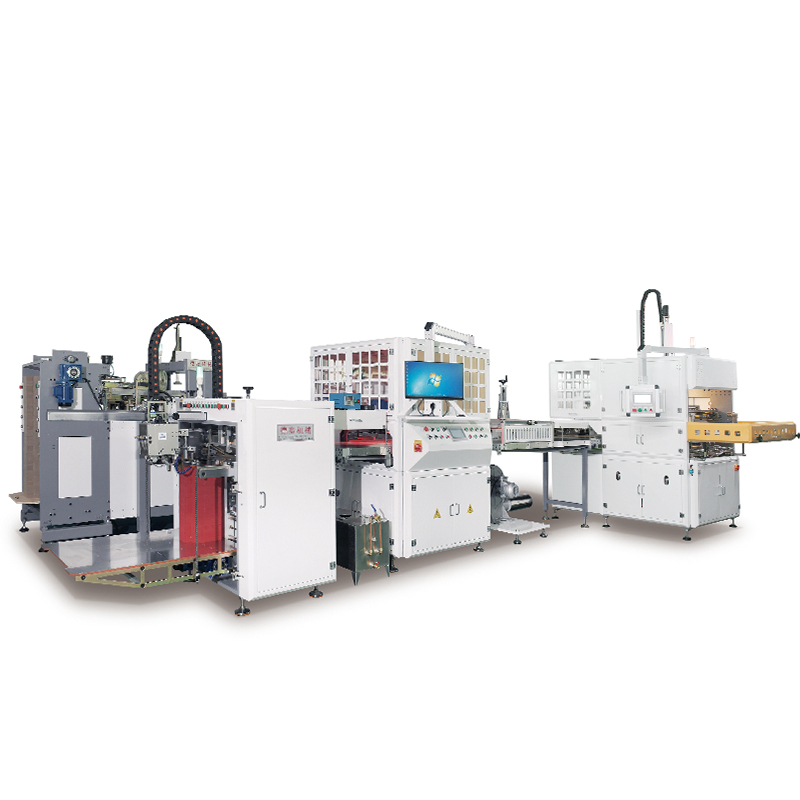

DG-567B Multi-function automatic box making machine

Installation dimensions:7350*4990*2800mm

The required number of:1pcs

Mechanical weight:About 5380KG

Air pressure:0.5-0.8Mpa

Work rate:16-19kw

Shell production speed:1200-1500pcs/h

Carton production speed:1000-1200pcs/h

Lining production speed:1200-1600pcs/h

Model window of corner-attached machine:Easy to match with automatic lines;

multiple patterns (two sections, beveled, shaped, with magnets, etc.); pull-down cassettes are well organized

Model window of forming machine:Intelligent adjustment by human-machine

interface, servo cam wrapping, guiding, folding in, no need to change the spatula and pressure foam plate

Features:

The machine is mainly divided into positioning module, corner module and molding module of three major parts, can realize all kinds of paper box, wooden box, glue box production of automatic paper feeding, automatic gluing, automatic cornering, automatic positioning, automatic molding and automatic pressure bubble, a series of technology process of automatic completion, turn the plate speed, the production of box body exquisite.

Positioning module of the black and white belt, double lens, automatic deskew, shell plate lining positioning, five-piece board positioning. Non-adhesive tape groove and double paper-raising table of corner-adhesive module. Intelligent adjustment, automatic locking, servo cam action, no need to change the spatula and bubble plate of the molding module are all researched, designed and produced by our company and have won a number of national patents.
