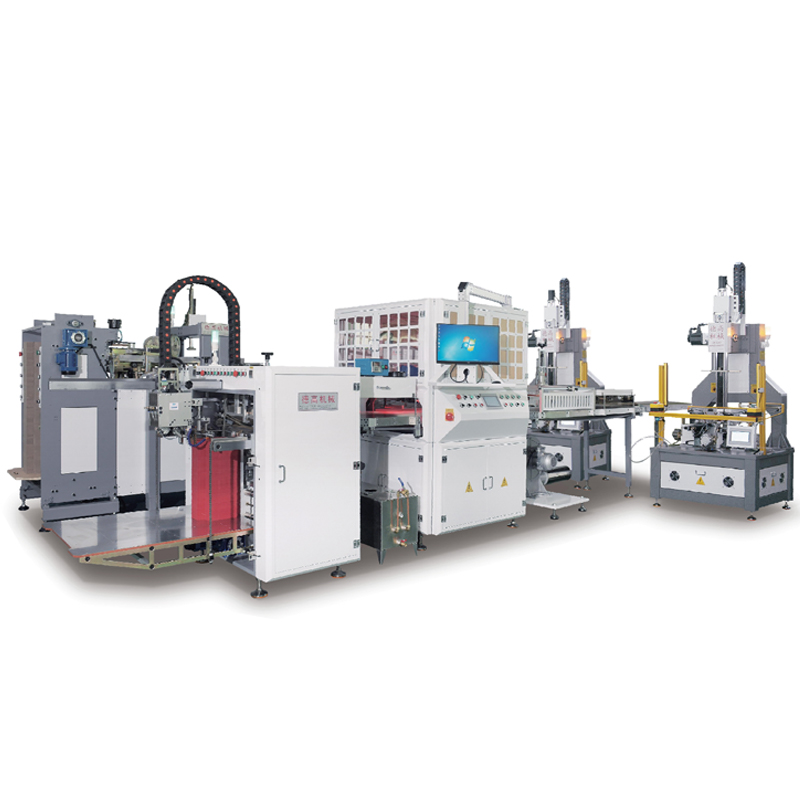

DG-567A Semi-automatic box making machine

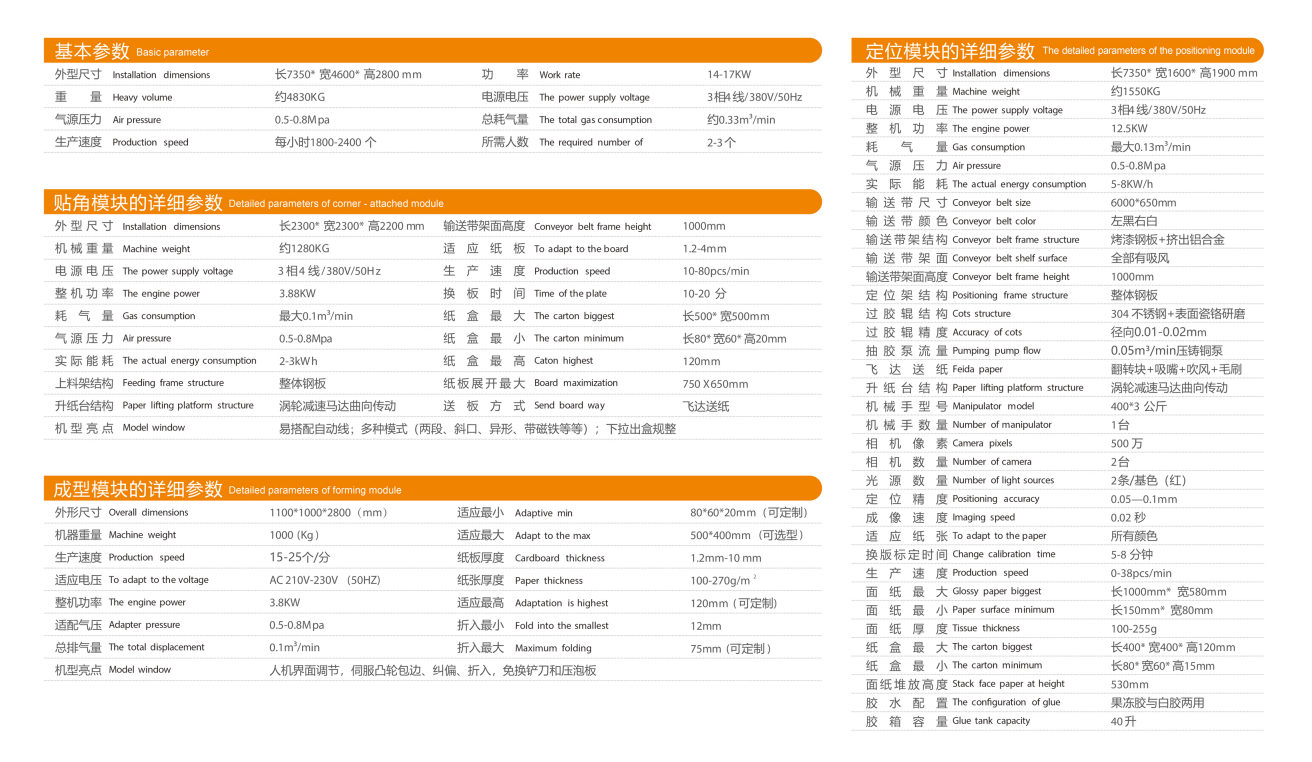

Installation dimensions:7350*4600*2800mm

The required number of:2-3pcs

Mechanical weight:About 4830KG

Air pressure:0.5-0.8Mpa

Work rate:14-17kw

Production  speed:1800-2400pcs/h

Model window of corner-attached module:Easy to match with automatic lines;

 multiple patterns (two sections, beveled, shaped, with magnets, etc.); pull-down cassettes are well organized

Model window of forming module:Intelligent adjustment by human-machine interface, servo cam wrapping, guiding, folding in, no need to change the spatula and pressure foam plate

Features:

The machine is mainly divided into three main parts: positioning module, cornering module and molding module, which can realize the continuous completion of a series of processes such as automatic paper feeding, automatic gluing, automatic cornering, automatic positioning, automatic molding and automatic bubble pressing for all kinds of paper boxes, wooden boxes and plastic boxes. It can adapt to a wide range of box types, with fast transfer speed and exquisite box body. The automatic deflection correction of the positioning module, the non-stick tape groove and double-riser paper table of the corner sticking module, the servo cam wrapping, deflection correction and deep folding of the molding module, the soft-sided beveled carton box, the horizontal and vertical folding lugs, and the folding lugs of the alignment lugs, etc. are all researched and developed and designed by our company and have obtained a number of national patents.
