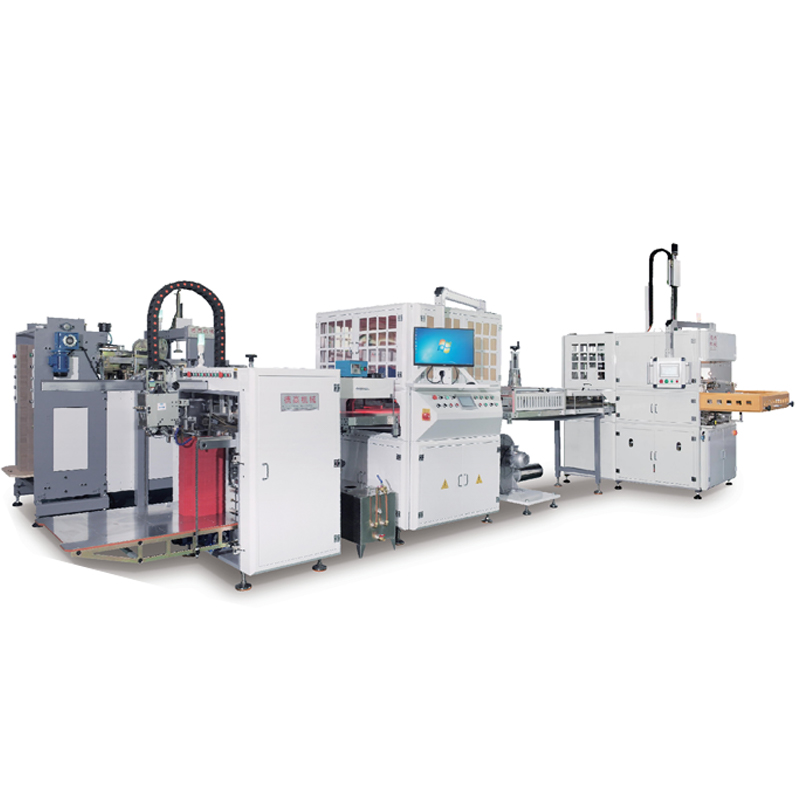

DG-567AB Full automatic box making machine

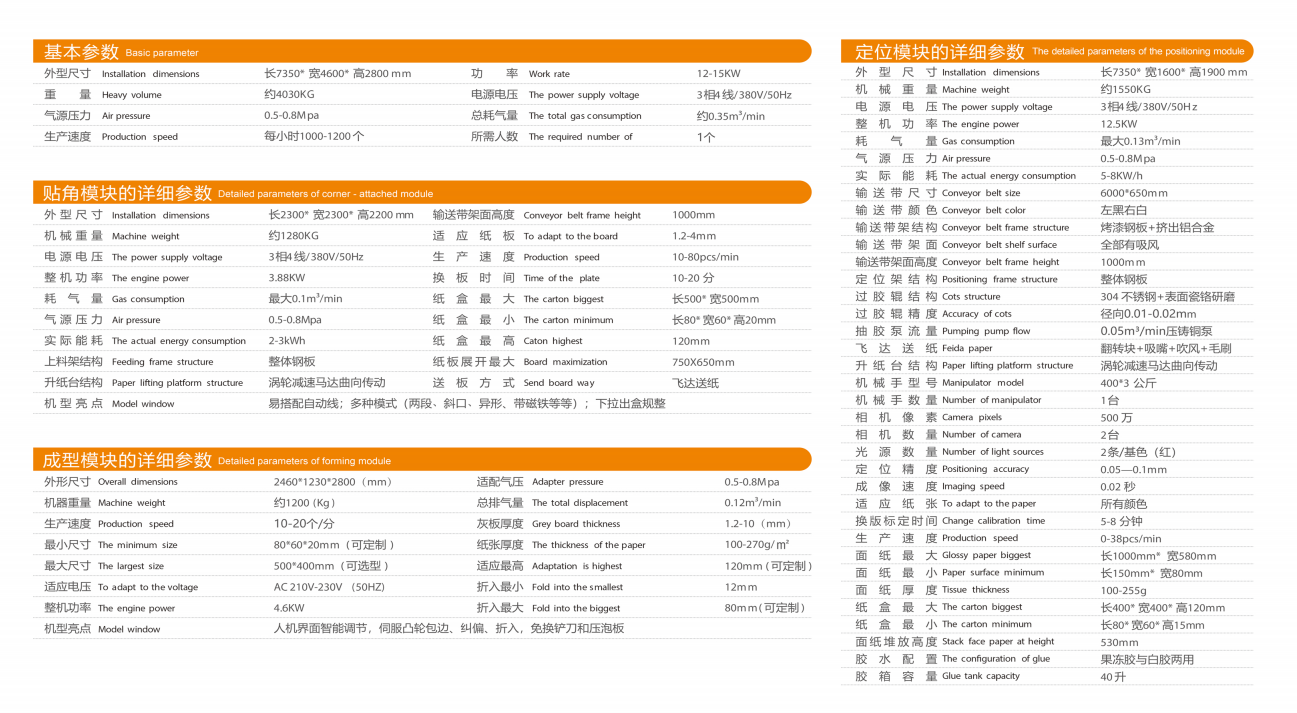

Installation dimensions:7350*4600*2800mm

The required number of:1pcs

Mechanical weight:About 5330KG

Air pressure:0.5-0.8Mpa

Work rate:15-18kw

Production speed:1000-1200pcs/h

Model window of corner:attached module:Easy to match with automatic lines; multiple patterns (two sections, beveled, shaped, with magnets, etc.); pull down cassettes are well organized

Model window of forming module:Intelligent adjustment by human machine

interface,servo cam wrapping, guiding, folding in, no need to change the spatula and pressure foam plate

Features:

The machine is mainly divided into positioning machine, cornering machine and molding machine three major parts, can realize all kinds of paper box, wooden box, glue box production, automatic paper feeding, automatic gluing, automatic cornering, automatic positioning, automatic molding and automatic pressure bubble, a series of technology process is completed automatically, the speed of turning the plate is fast, and the production of the box body is exquisite.

Positioning module of black and white belt, double lens, automatic deflection. Non-adhesive tape groove and double paper-raising table of corner-adhesive module. Intelligent adjustment, automatic locking, servo cam action, no need to change the spatula and pressure bubble plate of the molding module are all researched and designed by our company, and have obtained a number of national patents.
