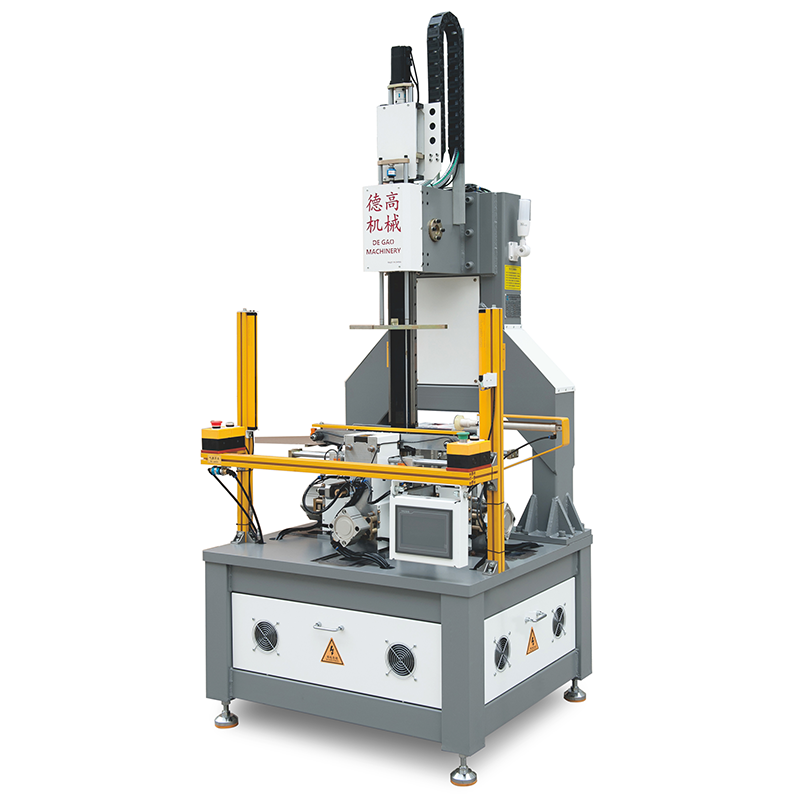

Automatic carton molding machine many people do not understand or understand not much, the following take you a simple decomposition of automatic carton molding machine system are applied to those technologies.
System 1: Facing paper conveying, gluing system
The printed tissue is fed into the gluing system, and after gluing and coating, it is sent to the conveyor belt to wait for the cardboard to be positioned. The system is installed with double-sheet detection device behind the flyer to prevent the phenomenon of conveying two or more sheets at a time due to temperature, humidity, etc. The gluing device is controlled by the gluing pump imported from Japan and frequency converter, which is not only easy to regulate the gluing volume but also stable in performance.
System 2: Folding system
After the cardboard is positioned on the face paper and fed into the folding system, the double-sided wrapping device completes the wrapping of the left and right sides first, and then the corner-pressing device is activated to complete the process of pressing the four corners, and finally the front and rear folding flap completes the front and rear wrapping of the edges respectively. So far, a complete set of hardcover cover production process is completed. In the folding system, the corner pressing process adopts imported optical sensors to control the cam device to realize the synchronization and stability of pressing four corners, and adopts mechanical flap to fold the edges, which makes the finished products beautiful and nice. All the surfaces of pressure rollers are sprayed with Teflon material, which is not easy to adhere to sticky water, so it not only makes the surface of the finished products clean and tidy, but also greatly reduces the cleaning time of the pressure rollers and improves the working efficiency, so it is widely welcomed.
System 3, Cardboard conveying, positioning system
The cardboard conveying and positioning system will be activated after detecting the surface paper on the conveyor belt. PLC will automatically calculate the deviation of the surface paper, then adjust the position of the cardboard and locate it on the surface paper, and then send it to the folding system by the conveyor belt of the carton molding machine.
