DG-567ABB Simplex Itelligent Automatic Box Making Machine
Five Advantages Of Products
- Intelligent regulation
- Customizable
- Low requirements
- Precise positioning
- Production speeds up to 1000-1200pcs/h
Product Details

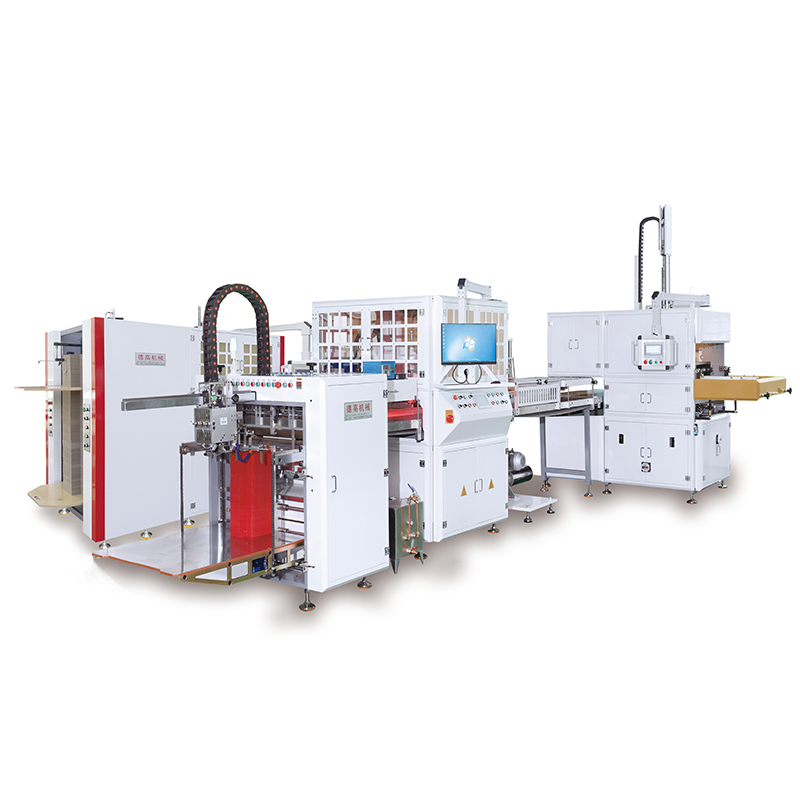

DG-567ABB Simplex itelligent automatic box making machine

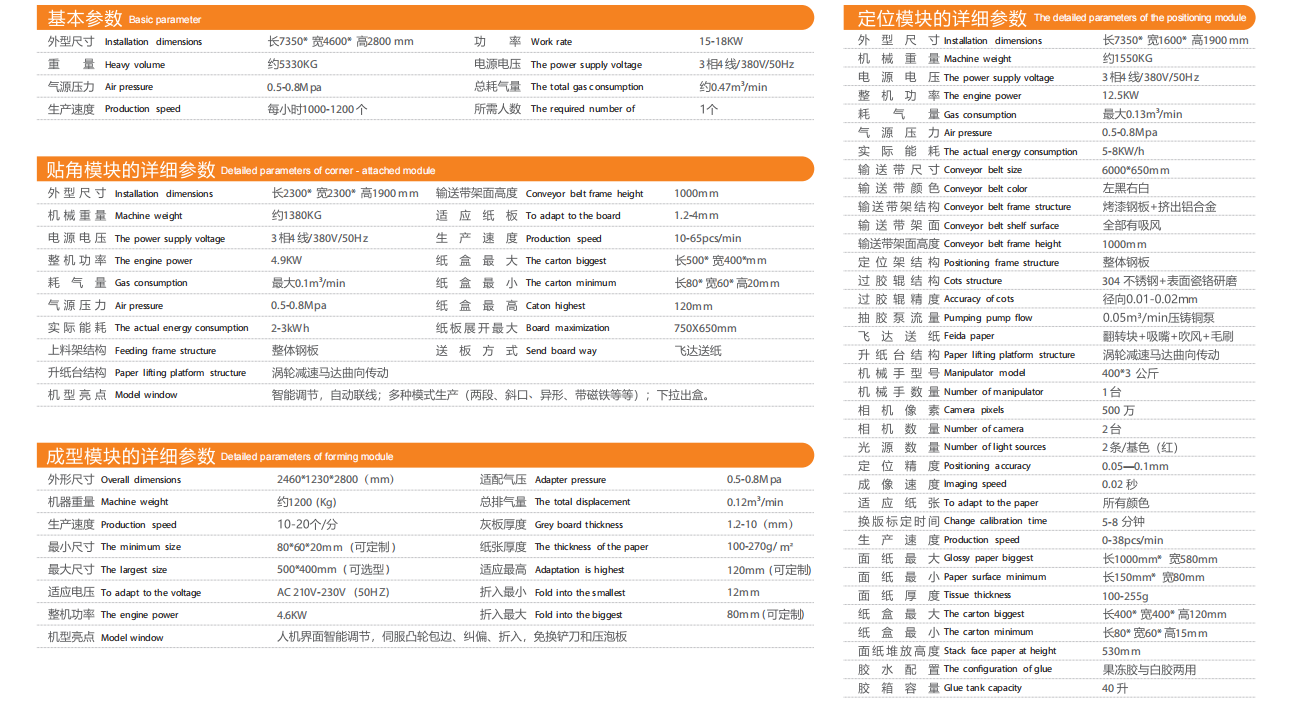

Installation dimensions:7350*4600*2800mm
The required number of:1pcs
Mechanical weight:About 5330KG
Air pressure:0.5-0.8Mpa
Work rate:15-18kw
Production speed:1000-1200pcs/h
Model window of corner attached module:Intelligent adjustment, automatic
linkage; multiple modes of production (two section, beveled, shaped, with magnets,
etc.); pull-down cassettes
Model window of forming module:Intelligent adjustment by human-machine
interface, servo cam wrapping, guiding, folding in, no need to change the
spatula and pressure foam plate
Features:
The machine is mainly divided into positioning module, cornering module and molding module three major parts; can realize all kinds of paper box, wooden box, glue box on the production of automatic paper feeding, automatic gluing, automatic cornering, automatic positioning, manual molding and automatic pressure bubble, a series of technology process is completed automatically, the turn of the plate speed, the production of the box body is exquisite.
Positioning module of black and white belt, double lens, automatic deflection correction. Intelligent adjustment, non-adhesive tape groove, and double-lift paper table of corner-adhesive module. Intelligent adjustment of forming module, automatic locking, servo cam action, no change of spatula and pressure bubble plate, etc., are all automatically developed and designed by our company, and have won a number of national patents.
dongguan degao machinery technology co.,ltd
Contact Person: Eva Yin
Department: Sales
Post: Sales Manager
Telephone: +86-189-2827-5267
Landline: +86-135-8077-6960
Company Address: First Floor, Building 4, Baediai Industrial Park, Changping Village, Daojiao Town, Dongguan City, Guangdong Province, China.
Factory Address: Degao Machinery, 1st floor, 4th Building, Baidai Industrial Park, Changping Village, Daojiao Town, Dongguan City, Guangdong Province
Website: www.degaomachinery.com
