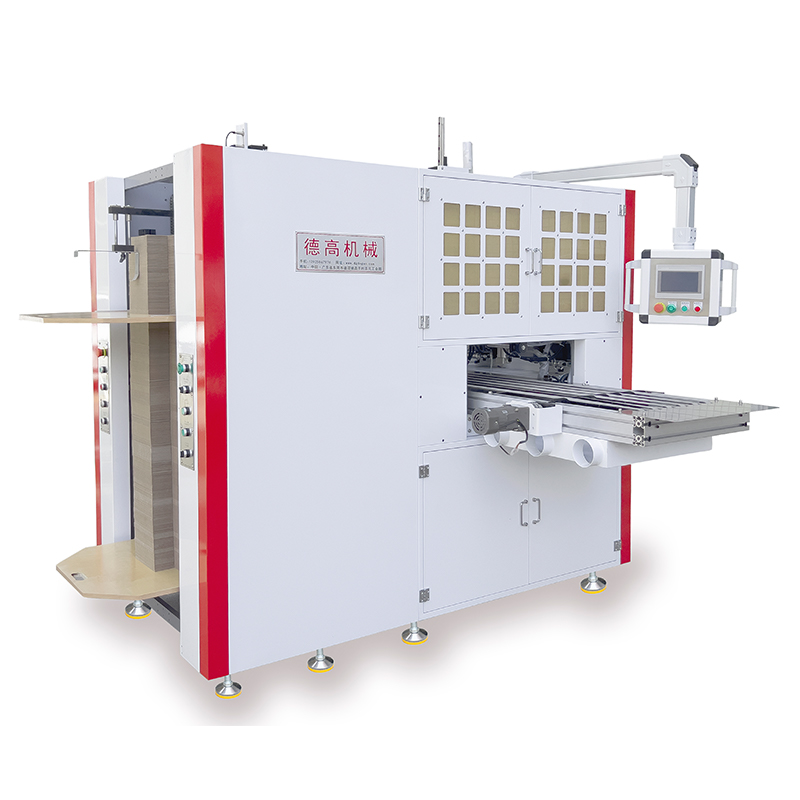

DG-567ACB Double-station itelligent automatic box making machine

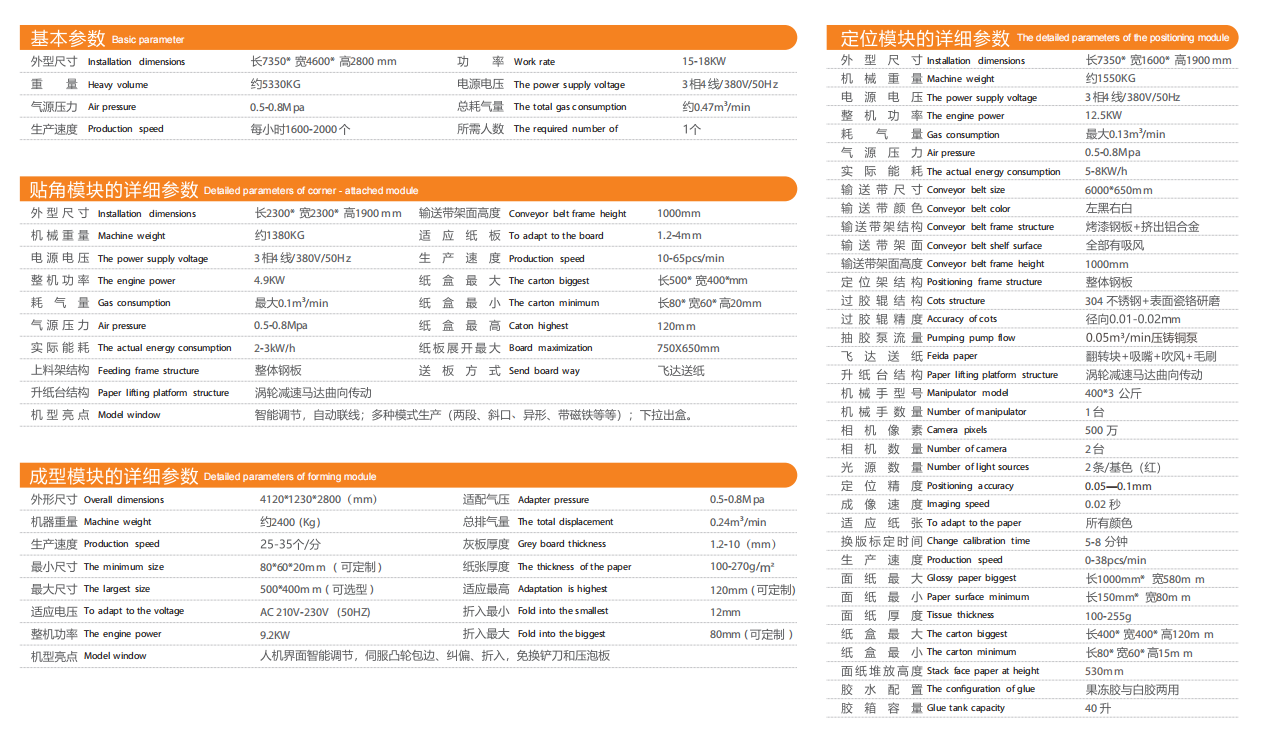

Installation dimensions:7350*4600*2800mm

The required number of:1pcs

Mechanical weight:About 5330KG

Air pressure:0.5-0.8Mpa

Work rate:15-18kw

Production  speed:1600-2000pcs/h

Model window of corner-attached module:Intelligent adjustment, automatic linkage; multiple modes of

production (two-section, beveled, shaped, with magnets, etc.); pull-down cassettes

Model window of forming machine

Intelligent adjustment by human-machine interface, servo cam wrapping, guiding, folding in, no need to change the spatula and pressure foam plate

Features:

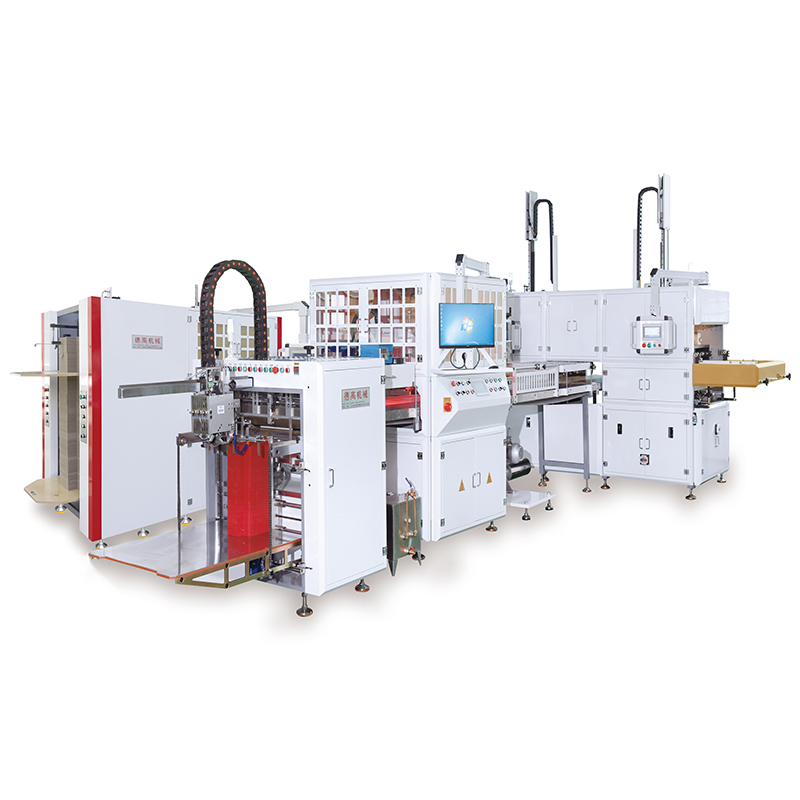

The machine is mainly divided into positioning module, cornering module and molding module three major parts; can realize all kinds of paper box, wooden box, glue box on the production of automatic paper feeding, automatic gluing, automatic cornering, automatic positioning, manual molding and automatic pressure bubble, a series of technology process is completed automatically, the turn of the plate speed, the production of the box body is exquisite.

Positioning module of black and white belt, double lens, automatic deflection correction. Intelligent adjustment, non-adhesive tape groove, and double-lift paper table of corner-adhesive module. Intelligent adjustment of forming module, automatic locking, servo cam action, no change of spatula and pressure bubble plate, etc., are all automatically developed and designed by our company, and have won a number of national patents.
