    DG-750B Intelligent Corner Pasting Machine

    Keywords :

    Automatic / Corner Pasting machine / Automatic rigid box making machine


    • Hits : 129
    • Company : dongguan degao machinery technology co.,ltd
    • Telephone : +86-189-2827-5267
    Contact Us

    Product Details

    Contact Us

    Five Advantages Of Products

    • Intelligent mold adjustment
    • Production speeds up to 10-65pcs/min
    • Anl-blocking groove
    • DEGAO choose well-known brand parts.
    • Continuous feeding

    Product Details

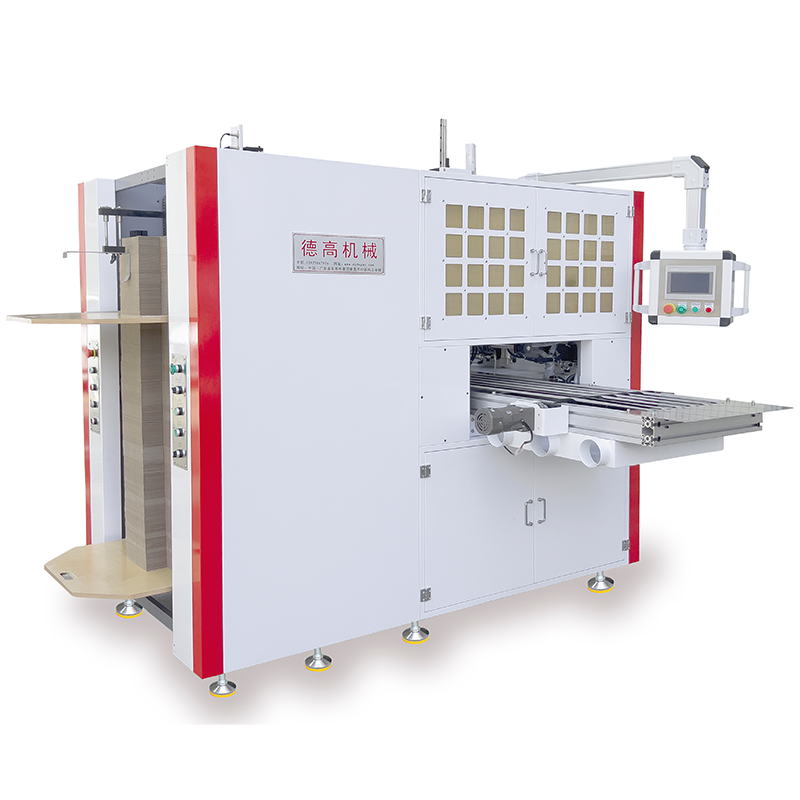

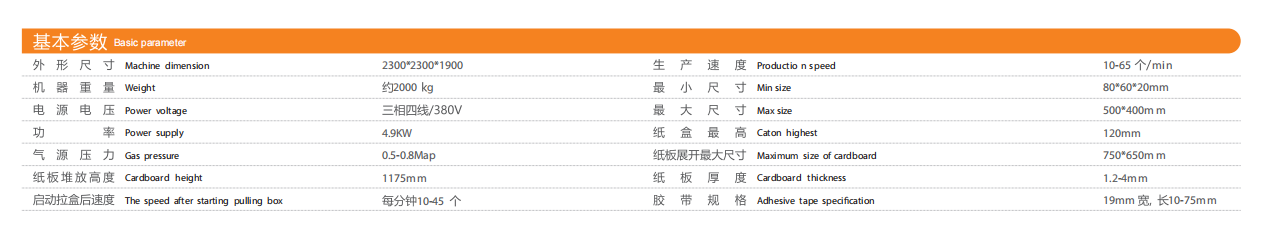

    DG-750B Intelligent Corner Pasting Machine

    Machine dimension:2300*2300*1900mm

    Min size:80*60*20mm

    Mechanical weight:About 2000KG

    Max size:500*400mm

    Power supply:4.9kw

    Caton higest:120mm

    Glue tank capacity:3-phase 4-wire/380V

    Maximum size of cardboard:750*650mm

    Adapater Gas Source:0.5-0.8Mpa

    Production speed:10-65pcs/min


    Functional features:

    1. Intelligent mold adjustment: the machine will automalially debug and ock ater iputting the box sizelt can start the produdion without corredion and psilioning.
    2. Feida paper feeding: new Feida paper feeding suitable for thin, thick, curved, grooving, comugatedand other malerials.

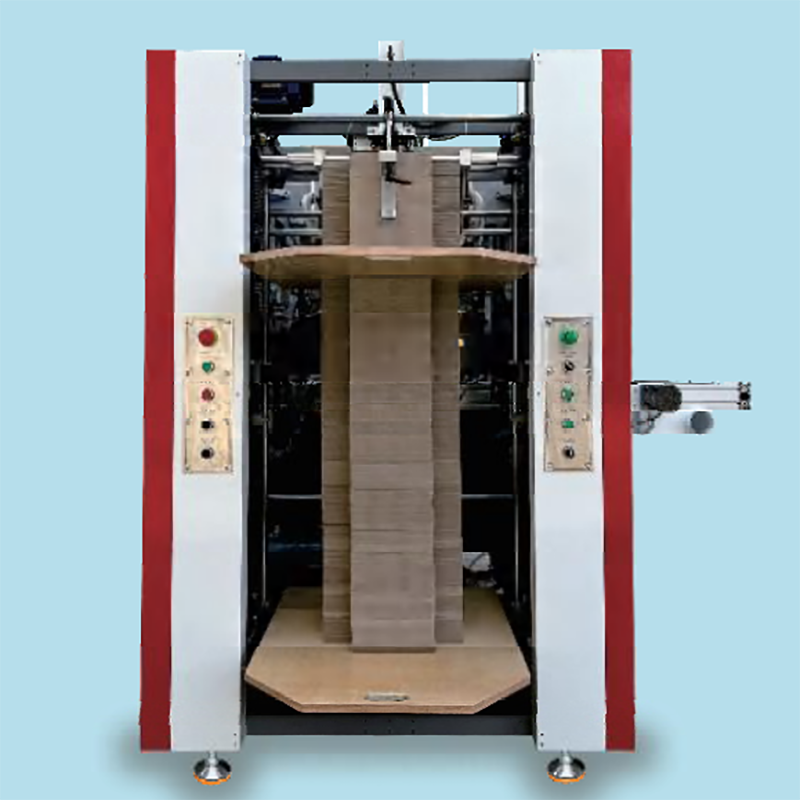

    3. Continuous feding: double paper platform device, it can stack up to 1.2m in height, recycing, improving eficiency and reduding labor intensity
    4. Puling box function: mechanica puling box structure. stable and fast, suitable for conneding vanous posttoning ines.
    5. Anl-blocking groove: high precision,nondefomation Tefion tape groove. completely avoid the problem oftape bocking and ape pasting.
    6 Whole frame: the whole frame made by large machine centre ensures the paralle ism and perpend cularty of al parts high assembly procsion.
    7. Htghqualty ectical aplances Panasonic Detta Schneider and other elcrica pplance. crntoldby PLC and seno molor, touch scree operatioi sale, smple, man-machine ntgabion.
