    DG-500A Servo CAM Forming Machine

    Keywords :

    Forming machine / Servo CAM / Semi-automatic rigid box making machine


    • Hits : 140
    • Company : dongguan degao machinery technology co.,ltd
    • Telephone : +86-189-2827-5267
    Contact Us

    Product Details

    Contact Us

    Five Advantages Of Products

    • Customizable and optional
    • Imported guide folding device
    • Spindle drive, imported double guideway, oblique rack and pinion
    • Servo drive control box
    • Quick mold change and adjusting machine design

    Product Details

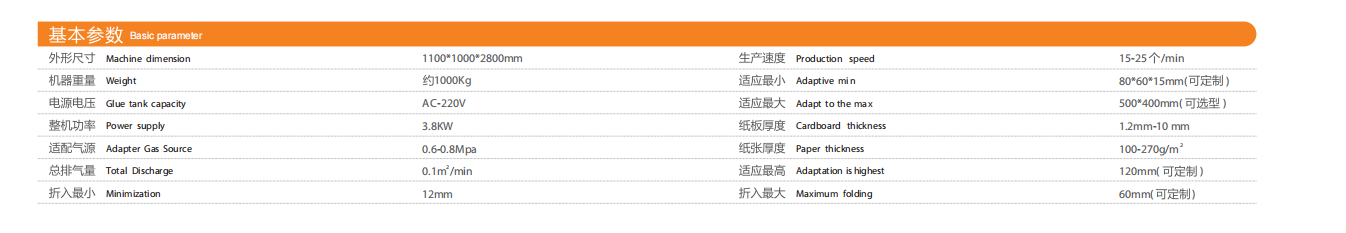

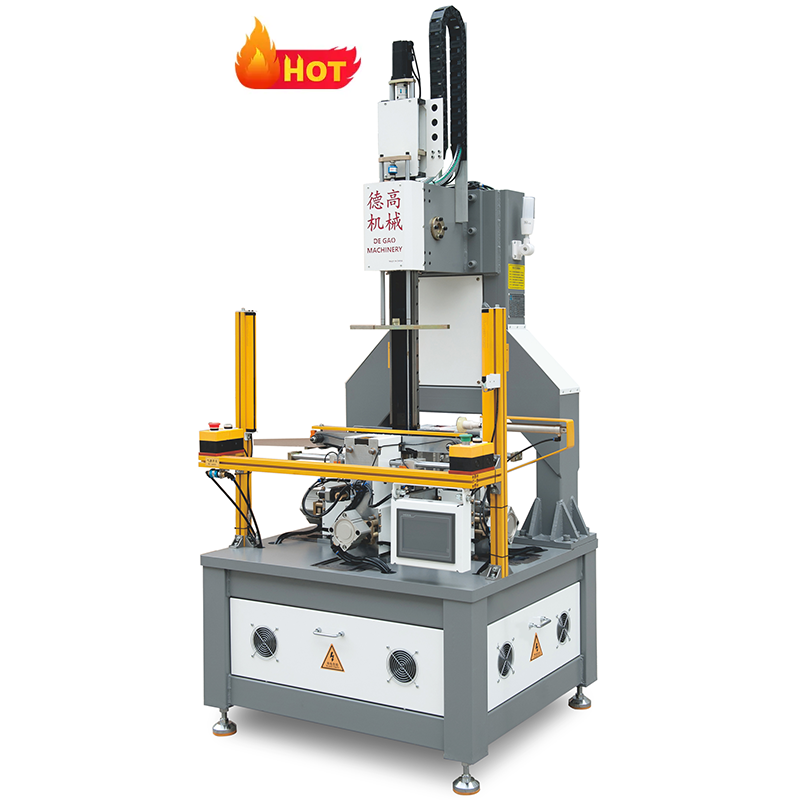

    DG-500A Servo CAM forming machine

    Machine dimension:1100*1000*2800mm

    Minimization:12mm

    Mechanical weight:About 1000KG

    Maximum folding:60mm(customizable)

    Power supply:3.8kw

    Adaptive min/max:80*60*15mm(customizable)/500*400mm(optional)

    Glue tank capacity/

    Adapater Gas Source:AC-220V/0.6-0.8Mpa

    Production speed:15-25pcs/min

    Adaptation is the highest:120mm(customizable)

    Total dischange:0.1m2/min

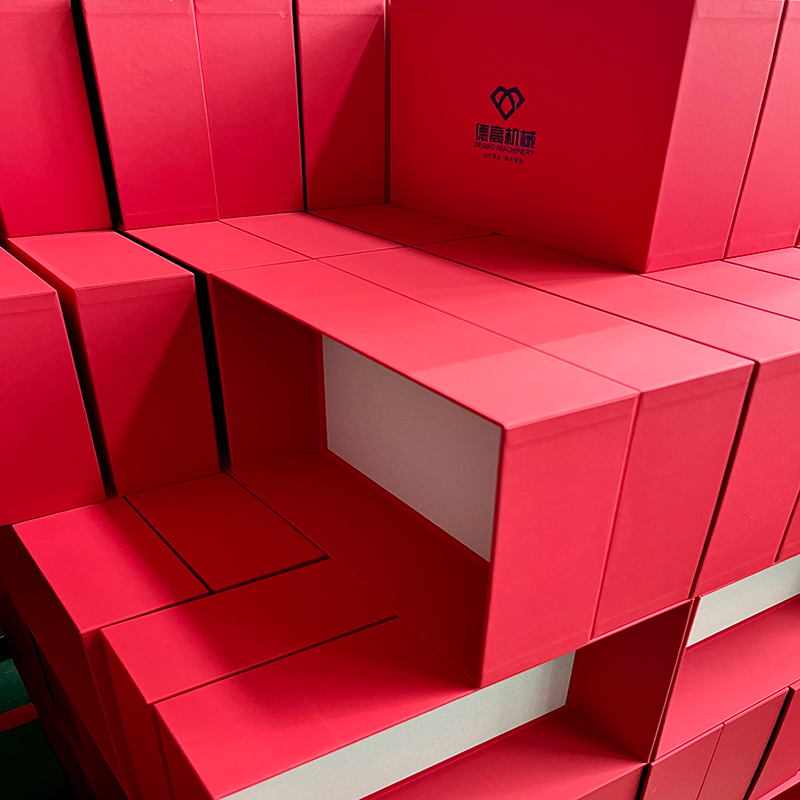

    This machine integrates wrapping, folding and pressing of carton into one, and uses servo driven helical gear and cam to complete continuous action. It is stable, smooth, precise and durable. It is a relatively reasonable molding machine at present, and also a wise and necessary model for the majority of gift box manufacturers.


    Features:

    1. The main shaft, parting die, brush roller, flanging and bubble pressing are all driven by servo, so the operation is stable, quiet, smooth and fast.
    2. The unique function of twice bubble removing for cam and cylinder can be selected once or twice according to the situation. The air storage adjustable bottom mold lifting design can adjust and control the defoaming force at the bottom of the carton.
    3. The helical gear mechanism drives the spindle to move stably, accurately, firmly, with high output and long service life. The whole machine can realize the slow motion operation of play type, and the cam mechanism can get more stable movement. When the speed changes, it can also keep synchronous, and it is easier to observe the production process during debugging.
    4. The action of ear folding can be set to 80mm. The guide rail and cylinder have high precision. The stroke can be customized to meet the production needs of different products.
    5. The pressure of vacuum suction box can be adjusted, and different pressures can be selected for large and small boxes, which is conducive to the smoothness and speed of manual box setting.
    6. Quick mold changing and adjusting machine design, program memory function, 15 minutes to complete version transfer.
    7. Imported grating protection, fault alarm, fault area display, ensure the safety of operation.
    8. Thickened platen, thickened frame and CNC machining center are completed one time to ensure operation stability and assembly standardization.
