    DG-500B Servo CAM Simplex Box Forming Machine

    Keywords :

    Forming machine / Automatic rigid box making machine / Servo cams


    • Hits : 122
    • Company : dongguan degao machinery technology co.,ltd
    • Telephone : +86-189-2827-5267
    Contact Us

    Product Details

    Contact Us

    Five Advantages Of Products

    • Full-automatic intelligent mold adjustment
    • Servo cam drive
    • Automatic box holding
    • No need to change the pressboard and folding knives
    • Maximum size can be customized

    Product Details

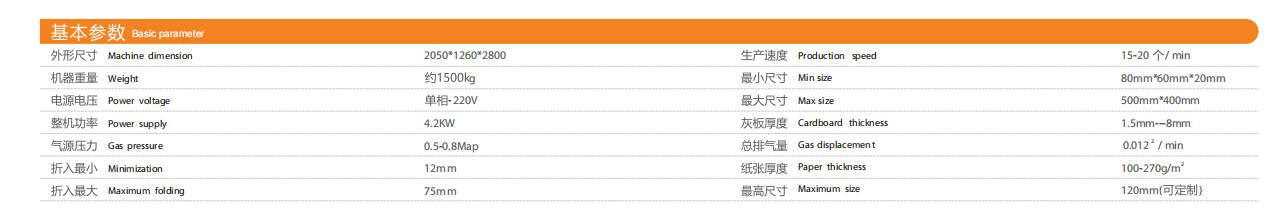

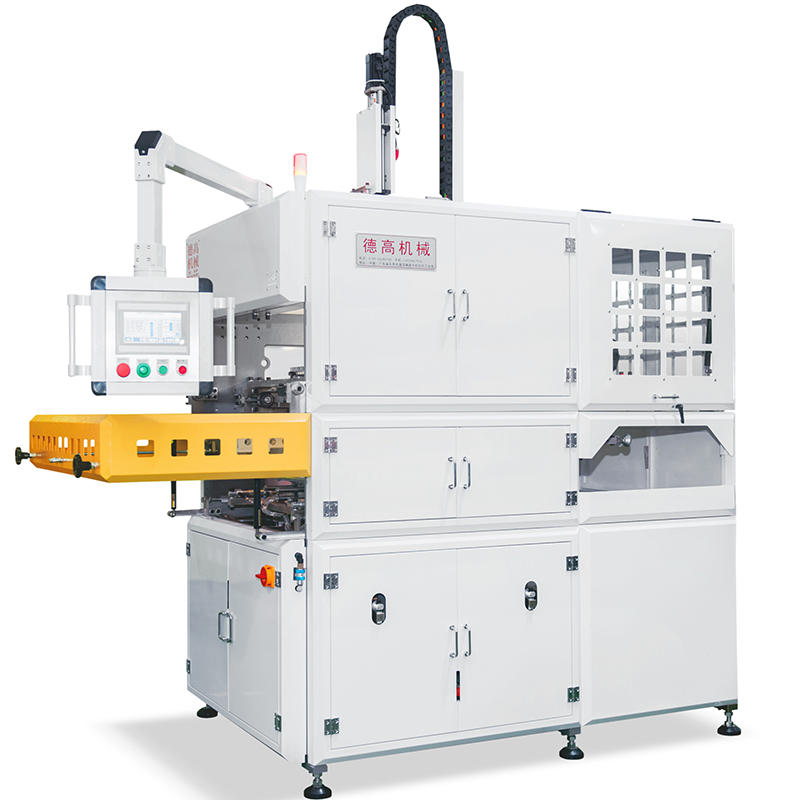

    DG-500B Servo CAM simplex box forming machine

    Machine dimension:2050*1260*2800mm

    Minimization:12mm

    Mechanical weight:About 1500KG

    Maximum folding:75mm

    Power supply:4.2kw

    Min size:80*60*20mm

    Power voltage:Single-phase-220V

    Max size:500*400mm

    Gas pressure:0.5-0.8Mpa

    Production speed:15-20pcs/min

    Maximum size:120mm(customizable)





    After the machine is automatically connected with the automatic positioning machine, it is a fully automatic box making machine. Two automatic double head box making machines can also be connected automatically. Cam drive, automatic mold adjustment, no blade change, no first pressure foam board, etc. Set intelligent, scientific, efficient design concept as one.


    Features:
    1. Servo cam drive: the servo motor is used to drive the cam action through the planetary reducer, so that the edge of the paper box can be folded into the forming work, with stable operation and long service life
    2. Automatic mold adjustment: after inputting the length, width and height of the carton and the height of the mold, the machine will automatically adjust the relevant molding position, and lock it automatically during production, without manual adjustment and locking, which is easy to operate and understand.
    3. No change of pressure foam board and edge folding knife: the machine has been installed with fixed length pressure foam board and edge folding knife, which can adapt to the production of carton of any size without replacement and disassembly, thus saving the time and cost of plate rotation.
    4. Automatic box holding: after combined with the automatic positioning machine, it can automatically hold the positioned box into the machine for forming, and automatically hold out after the completion of edge wrapping, folding and bubble pressing, without manual participation, ensuring safety, stability and rapidity.
    5. Storage and memory function: as long as the carton is produced, it will automatically save the data in unlimited quantity. When the carton is produced again, it can be called out for confirmation without further adjustment, which truly realizes artificial intelligence.
    6. Multiple bubble pressing: the pressure of 400kg on one side can realize 12 bubble pressing on the front, back, left and right sides respectively or as a whole. The box is flat and beautiful without bubbles.
