DG-500C Servo CAM Bouble Position Holding Box Forming Machine

Products

Keywords :

Forming machine / Automatic rigid box making machine / Servo cams

Hits : 118
Company : dongguan degao machinery technology co.,ltd
Telephone : +86-189-2827-5267

Product Details

Contact Us

Five Advantages Of Products

Servo cam drive: the servo motor is used to drive the cam action through the planetary reducer, so that the edge of the paper box can be folded into the forming work, with stable operation and long service life
Automatic mold adjustment: after inputting the length, width and height of the carton and the height of the mold, the machine will automatically adjust the relevant molding position, and lock it automatically during production, without manual adjustment and locking, which is easy to operate and understand.
No change of pressure foam board and edge folding knife: the machine has been installed with fixed length pressure foam board and edge folding knife, which can adapt to the production of carton of any size without replacement and disassembly, thus saving the time and cost of plate rotation.
Automatic box holding: after combined with the automatic positioning machine, it can automatically hold the positioned box into the machine for forming, and automatically hold out after the completion of edge wrapping, folding and bubble pressing, without manual participation, ensuring safety, stability and rapidity.
Multiple bubble pressing: the pressure of 400kg on one side can realize 12 bubble pressing on the front, back, left and right sides respectively or as a whole. The box is flat and beautiful without bubbles.

Product Details

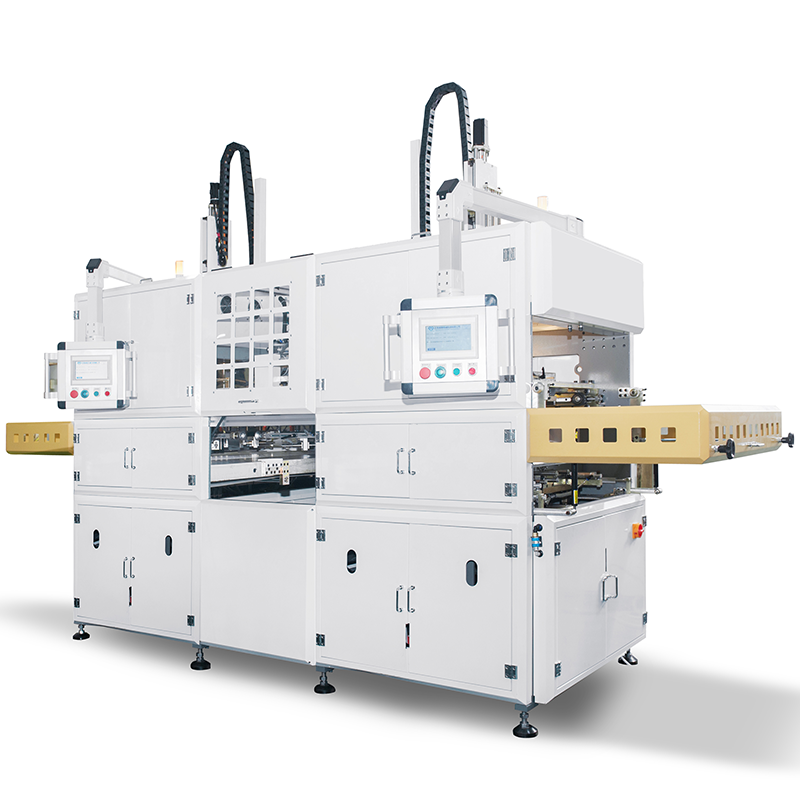

DG-500C Servo CAM double position holding box forming machine

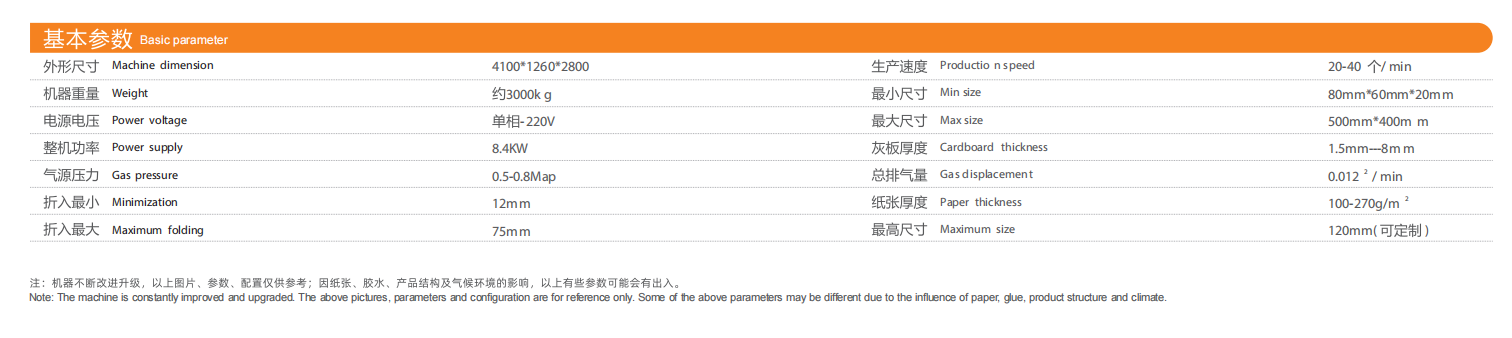

Machine dimension:4100*1260*2800mm

Minimization/Maximum folding:12mm/75mm

Mechanical weight:About 3000KG

Min/Max size:80*60*20mm/500*400mm

Power supply:8.4kw

Production speed:20-40pcs/min

Power voltage/Gas pressure:Single-phase-220V/0.5-0.8Mpa

Maximum size:120mm(customizable)

Cardboard thickness:1.5mm-8mm

Gas displacement:0.0122/min

Features:

This machine is automatically linked with automatic positioning machine, which is a fully automatic carton making machine. It can also be automatically linked with two machines, that is, automatic double-head box making machine. Cam drive, automatic mold adjustment, no change of spade knife, no change of bubble plate, automatic box holding, storage memory function, multiple bubble pressing and so on. As long as the carton has been produced, the data will be automatically saved in unlimited quantity, and when the carton is produced again, it can be called out for confirmation without adjusting again, which truly realizes artificial intelligence. Intelligent, scientific and efficient design concept as a whole.
