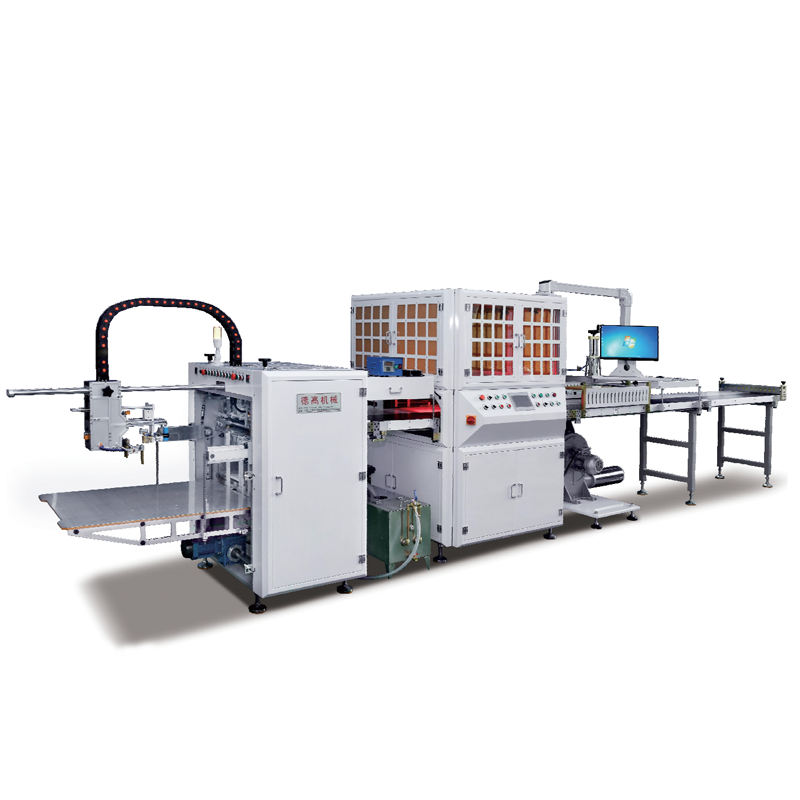

DG-600A Manipulator image positioning machine (Multi-servo Feida)

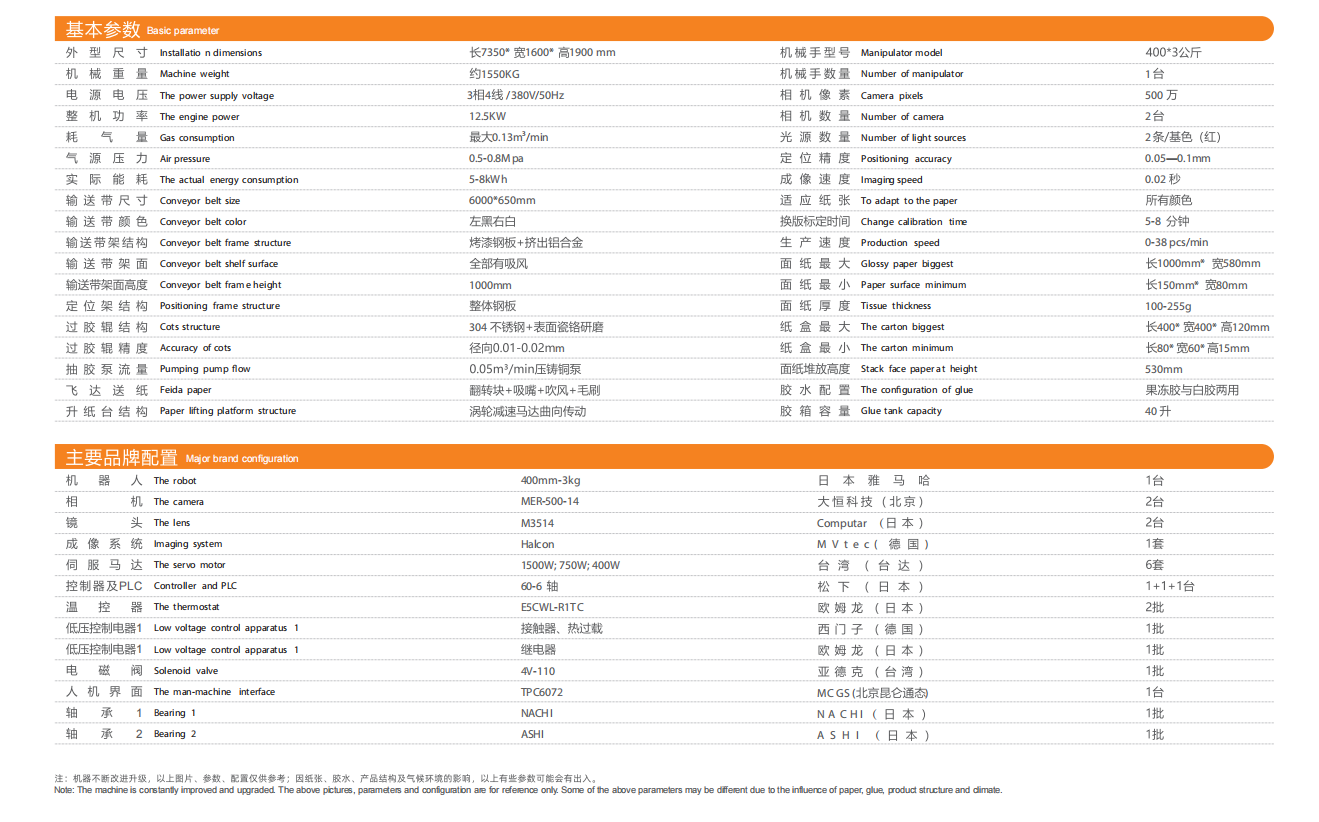

External Dimension:7600*2350*1900mm

Glossy paper biggest:1000*580mm

Mechanical weight:About 1550KG

Paper surface minimum:150*80mm

Overall power:12.5kw

The carton biggest/minimum:400*400*120mm/80*60*15mm

The power supply voltage:3-phase 4-wire/380V/50Hz

Face paper maximum/minimum/thickness:1000*580mm/150*80/100-255g

Air pressure:0.5-0.8Mpa

Production speed:0-38pcs/min

Features:

The equipment is mainly used by Japan Yamaha 400 stroke robot to complete the positioning process, smooth and fast action, high precision requirements, long service life.Imported high-definition dual camera imaging, fast exchange and calculation of paper position, high precision and fast speed.Carton carry shaping correction function, servo drive belt, forming aluminum frame, stable operation, accurate positioning point.The program is designed and developed by ourselves, which is controllable and operable, easy to learn, simple operation interface, and easy for novices to work.The machine is all independently developed, designed and produced by our company, among which the servo cam Feida part, the glue passing part and the lacquering part have obtained a number of national patents.
