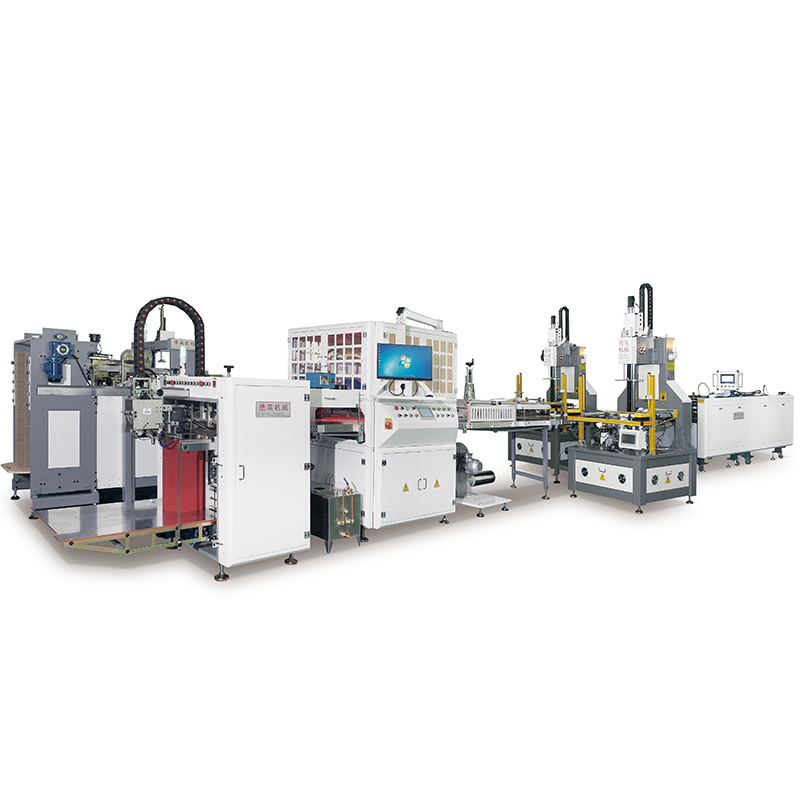

DG-567E Multifunctional carton shell lining production line

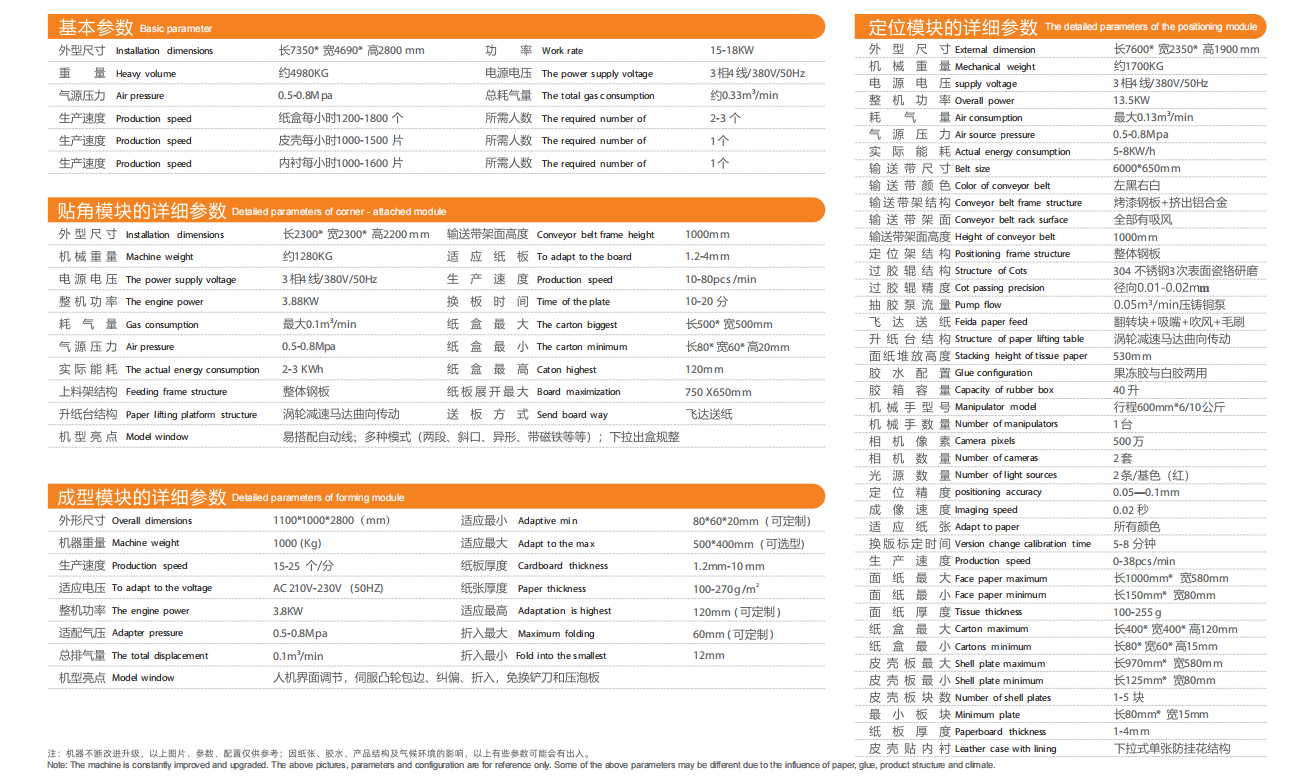

Installation dimensions:7350*4690*2800mm

The required number of:1pcs

Mechanical weight:About 4980KG

Air pressure/Work rate:0.5-0.8Mpa/15-18kw

Carton/Shell/ Lining production speed:

1200-1800pcs/h

1000-1500pcs/h

1000-1600pcs/h

The carton biggest/minimum/highest:500*500mm/80*60*20mm/120mm

Send board way:Fidelity paper feed

Board maximization:750*650mm

Model window of corner-attached module:Easy to match with automatic lines;

multiple patterns (two sections, beveled, shaped, with magnets, etc.); pull-down cassettes are well organized

Model window of forming module:Intelligent adjustment by human-machine

interface, servo cam wrapping, guiding, folding in, no need to change the spatula and pressure foam plate

The machine is mainly divided into four parts: positioning module, cornering module, molding module and four sides of the shell package, which can realize the production of various types of paper boxes, wooden boxes, plastic boxes, leather shells, liners, automatic paper feeding, automatic gluing, automatic cornering, automatic positioning, automatic molding, automatic wrapping and automatic pressure bubble, a series of processes to be completed in a continuous manner. Precise alignment, fast transfer speed, and exquisite box production.

Positioning module of black and white belt, double lens, automatic deviation correction, leather shell board lining positioning, five-piece board positioning. Non-adhesive tape slot and double rising paper table of corner lamination module. Servo cam wrapping, deskewing, deep folding, soft side beveled carton box, horizontal and vertical folding lugs, pair of lap aligning lugs, etc., all of which are researched, developed and designed by our company and have obtained many national patents.
