Five Advantages Of Products

Adaptation to all kinds of leather shell and lining production lines
Positioning module for fast imaging and accurate positioning
Low requirements.
A series of process procedures are completed automatically
Realize automatic paper feeding, automatic gluing, automatic positioning, automatic edge wrapping, automatic bubble pressing

Product Details

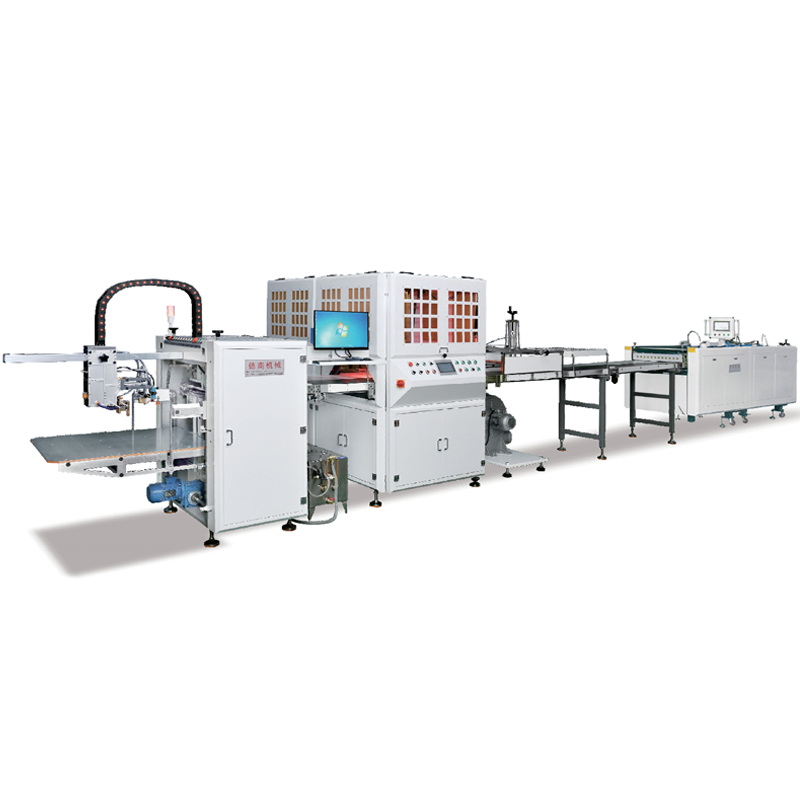

DG-9045 Multifunctional leather case (lining) machine

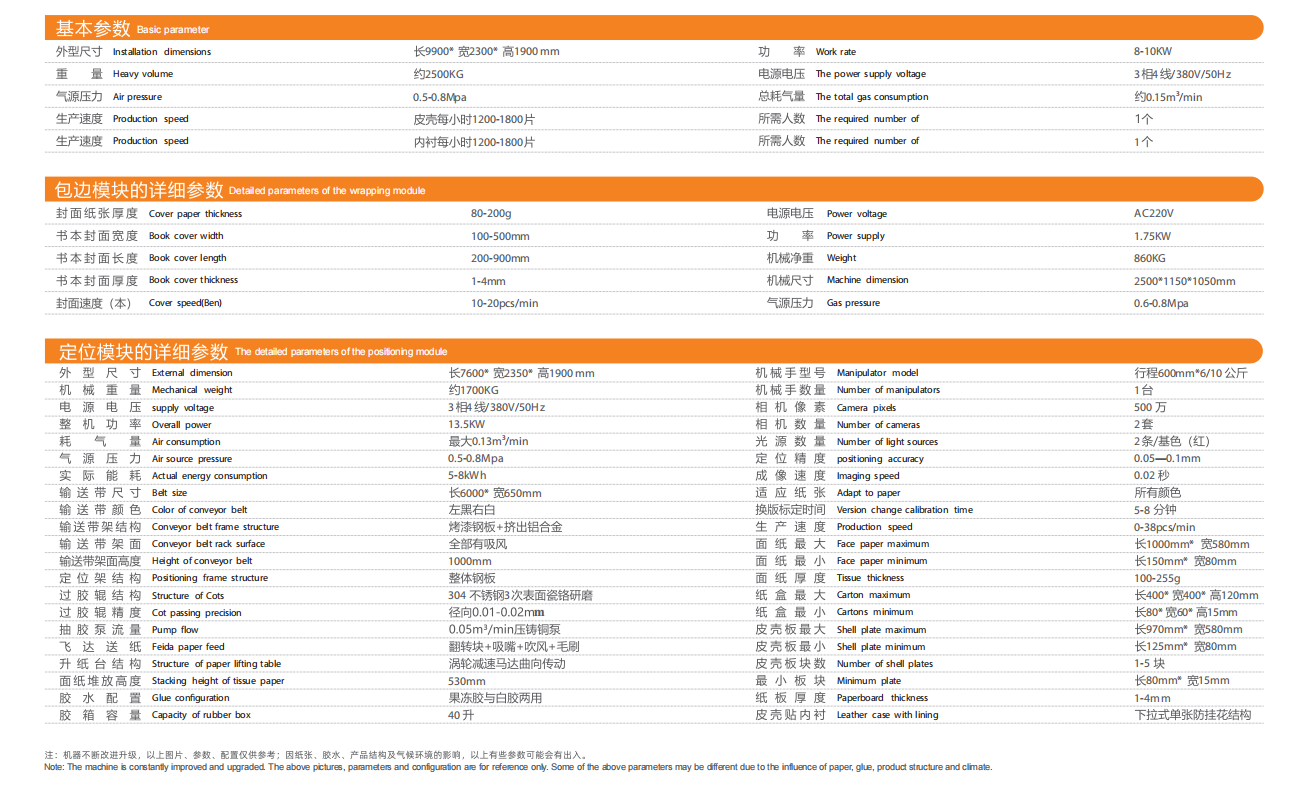

Installation dimensions:9900*2300*1900mm

The required number of:1pcs

Mechanical weight:About 2500KG

Air pressure/Work rate:0.5-0.8Mpa/8-10kw

Shell/Lining production speed:

1200-1800pcs/h

Face paper maximum/minimum/thickness:1000*580mm/150*80mm/100-255g

Caton maximum/minimum:400*400*120mm/80*60*15mm

Shell plate maximum/minimum:970*580mm/125*80mm

Features:

The machine is mainly divided into two parts: the positioning module and the four sides of the shell package, which can realize the automatic paper feeding, automatic gluing, automatic positioning, automatic edge wrapping and automatic bubble pressing of all kinds of shell and lining production, and a series of process procedures are completed automatically. Precise alignment and fast transfer speed.

Positioning module of black and white belt, double lens, automatic deskew, shell plate lining positioning, five-piece plate positioning. The servo cam pulling action of the edging module are all developed and designed by our company and have obtained many national patents.
