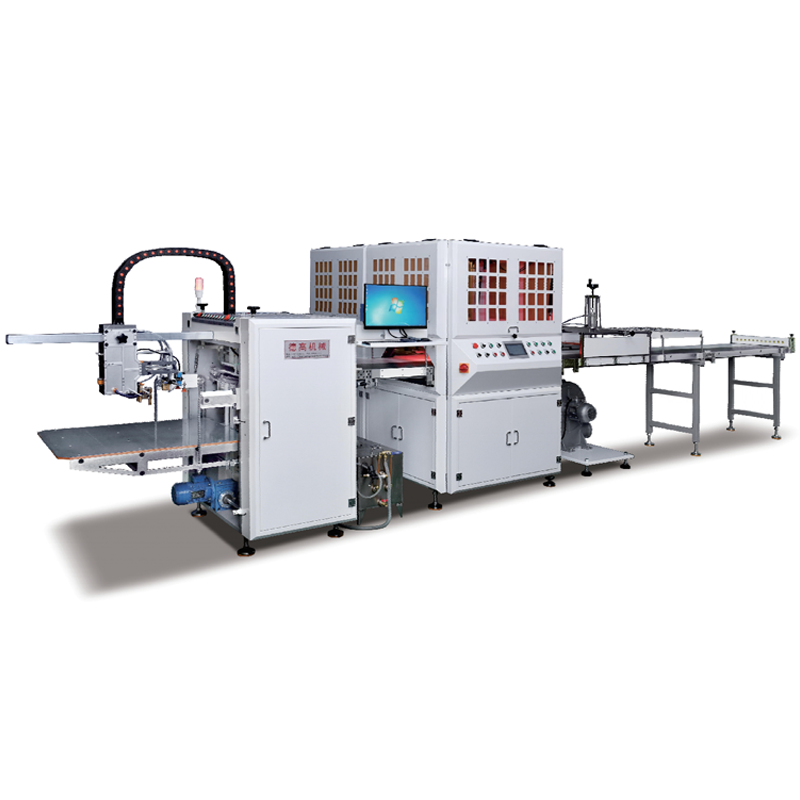

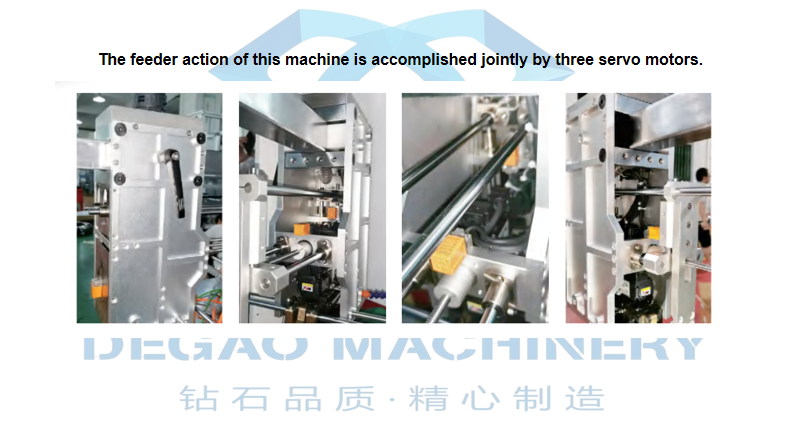

DG-600B Multi-function manipulator image positioning machine (Multi-servo Feida)

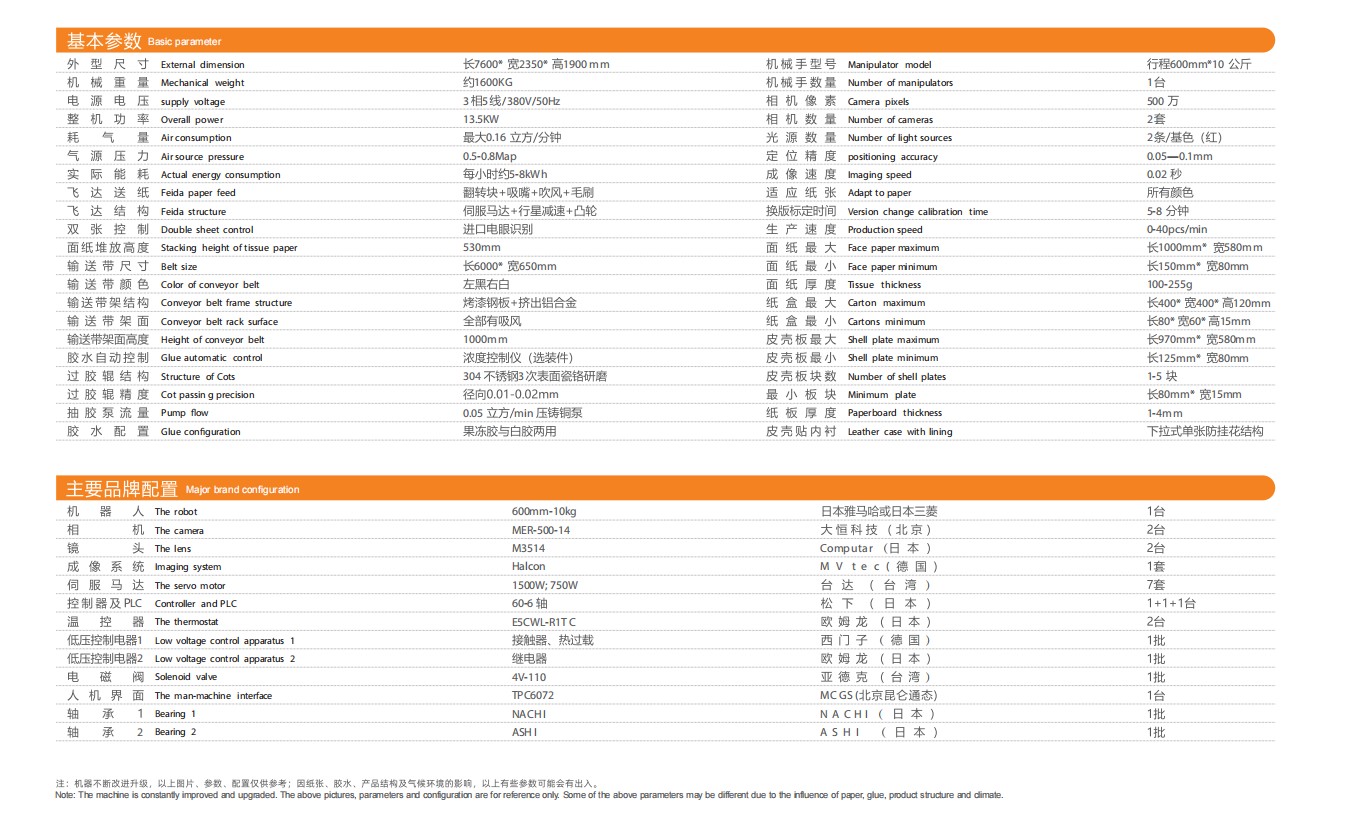

External Dimension:7600*2350*1900mm

Glossy paper biggest:1000*580mm

Mechanical weight:About 1600KG

Paper surface minimum:150*80mm

Overall power:13.5kw

The carton biggest/minimum:400*400*120mm/80*60*15mm

Face paper maximum/minimum/thickness:1000*580mm/150*80/100-255g

Shell plate maximum/minimum:970*580mm/125*80

Air pressure:0.5-0.8Mpa

Production speed:0-40pcs/min

Features:

This machine adopts Japan Mitsubishi 600 stroke robot, imported camera, Panasonic PLC and other international high-end electrical appliances, positioning size, high precision, stable operation, fast speed, strong maneuverability, turn the version of the adjusting machine about five minutes, suitable for all kinds of cartons, leather shell lining of the paper, overglue, the production of the alignment, especially the pull-down type lining device completely solve the problem of the leather shell scratches. The machine is developed, designed and produced by our company, among which the servo cam flyer part, gluing part and program control part have obtained many national patents.
